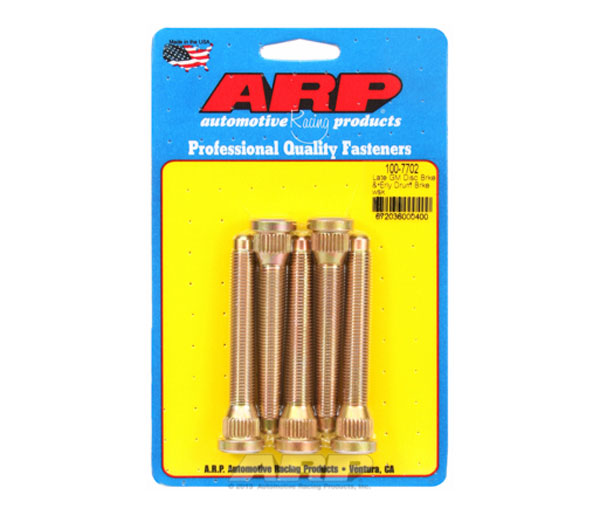

ARP Late GM disc brake & early drum brake Wheel Stud Kit - 100-7702
Bronze Press-In Lug Studs (100-7702) by ARP®. Thread Size: 7/16" x 20. Under Seat Length: 81.3 mm....
- $33.65
$38.90- $33.65
- Unit price
- per
Please hurry! Only 7 left in stock
Subtotal:
$33.65
10 customers are viewing this product
Couldn't load pickup availability
Description
xBronze Press-In Lug Studs (100-7702) by ARP®. Thread Size: 7/16" x 20. Under Seat Length: 81.3 mm. Knurl Length: 7.6 mm. Knurl Diameter: 14.7 mm. Quick-Start Nose Length: 7.7 mm. Quantity: 5 Pieces. Package Type: Skin. Because races can be won or lost in the pits, the engineers at ARP set about to create the ultimate oval track competition Lug stud that facilitates accurate Lug positioning and quicker release/tightening of lug nuts. Designed for professional racing environments where splitsecond improvements in pit stop times can make the winning difference, and "unbustable" reliability is an absolute must. ARP’s Speed Nuts feature a profiled nut face for easy installation, quicker socket releases and resistance to jamming. They’re made from premium heat-treated chrome moly that’s nominally rated at 200,000 psi tensile strength, shot-peened to remove stress risers and double magnafluxed after heat-treating and thread-forming to assure 100% metallurgical integrity. Coated with Alumotef III gold coating. Speed Nuts are ready for "instant" use (thread chasing not required).
- 190,000 psi Tensile Strength
- Cadmium plated for extra durability
- Heat-treated 8740 chrome moly wheel studs
- 7/16 in.-20 Thread Size
- Wheel Stud Style: Press-in
- 5 - Wheel Studs
| Specifications | |
|---|---|
| Knurl Diameter | 0.580˝ |
| UHL | 3.200˝ |
| Knurl Length | 0.300˝ |
| Nose Length | 0.305˝ |
| Diameter - Pitch | 7/16-20 |
| Wheel Stud Hole Size - Cast Iron/Steel Hub | 0.564˝ - 0.574˝ |
| Cast Iron/Steel Hub Drill Bit Size (actual dim.) | 14.5mm (0.571˝) |
| Wheel Stud Hole Size - Aluminum Hub | 0.470˝ - 0.476˝ |
| Aluminum Hub Drill Bit Size (actual dim.) | 9/16˝ (0.563˝) |
