AMS Red Alpha Fuel Filter Kit | 2016-2021 Infiniti Q50/Q60 3.0T

Infiniti Q50/Q60 VR30 Fuel Filter Kit by AMS Performance

The AMS Performance Q50/Q60 Red Alpha Fuel Filter Kit has been designed to be the highest quality and most sophisticated solution for fuel filtering of the VR30 engine on the market.

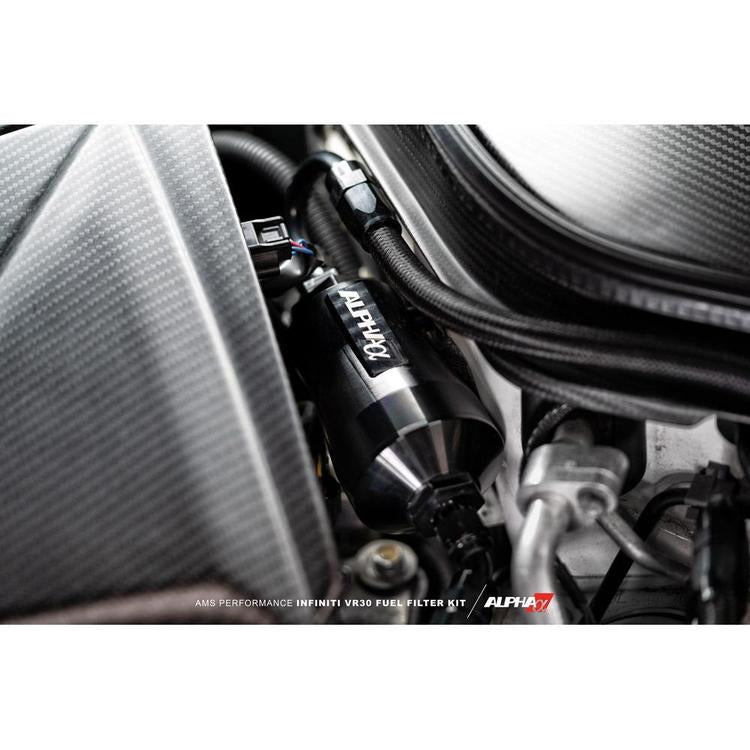

We designed the custom filter housing for use specifically on the Q50 and Q60 with VR30 engine so that it can be bolted directly to the vehicle’s chassis in OEM bolt locations. This is a safety feature as much as it is an aesthetic one, as it is done to prevent any possibility of damage to the lines from continuously rubbing on other components, as well as to prevent fittings from possibly loosening over time, causing a dangerous fuel leak.

Inside the filter housing is where the real engineered features are located. The shape of the housing has been designed to promote unimpeded fuel flow through it by reducing or expanding the size of the ports inside the housing. As fuel flows from right to left, we reduce the internal volume to send fuel inward, towards the filter. As shown in the cross section photo graphic below, the inlet and outlets are both radiused at the ends and tapered at a certain angle for optimal fuel throughput.

The most important part of any fuel filter kit is the filter element itself. Without a quality filter element, designed specifically for the fuel type you will be using, a fuel filter kit would be useless. This is why we chose to use a 6 micron glass filter, manufactured by a top tier automotive fuel system component manufacturer. This means the AMS Q50/Q60 Red Alpha Fuel Filter Kit has the ability to filter particulate down to 6 microns in size from your fuel, for the ultimate in engine protection. This is the finest fuel filter element specifically for the VR30 engine on the market, to protect your investment.

Features

• Standalone kit allows users to install on their factory stock fuel lines, or purchase as add-on unit with AMS Flex Fuel Kit
• Fully integrates with the AMS Flex Fuel Kit for a seamless solution (available separately)
• CNC machined filter housing features built in mounting solution to secure the unit and lines from dangerous movement
• Glass filter element material for 100% ethanol compatibility
• Uses motorsport-grade AN fittings and aluminum quick connect fittings for easy install and leak-free operation
• Utilizes all race grade black nylon coated E85 compatible -6AN braided hose

Benefits

• Highest filtering effectiveness on the market with 6 micron filter
• Bolt-in install with no permanent modification to vehicle required

Applications

• 2016 - 2021 Infiniti Q50 3.0T
• 2017 - 2021 Infiniti Q60 3.0T
